INTERNATIONAL® DIAMOND
LOGIC® ELECTRICAL SYSTEM
CONTROL FARTHER WITH
DIAMOND LOGIC.
Improve productivity, safety and uptime
International Diamond Logic electrical system seamlessly integrates chassis and body equipment with an array of programmable controls, tools and analytics. The high degree of integration helps drivers operate truck bodies more safely and easily. Plus, the plug-and-play components decrease installation time which means you can get connected and get to work.
FEATURES
CUSTOMIZE
Diamond Logic equips operators with nearly 200 factory available safety and efficiency features. Unlike any other system, users have the power to program individual features for their specific needs.

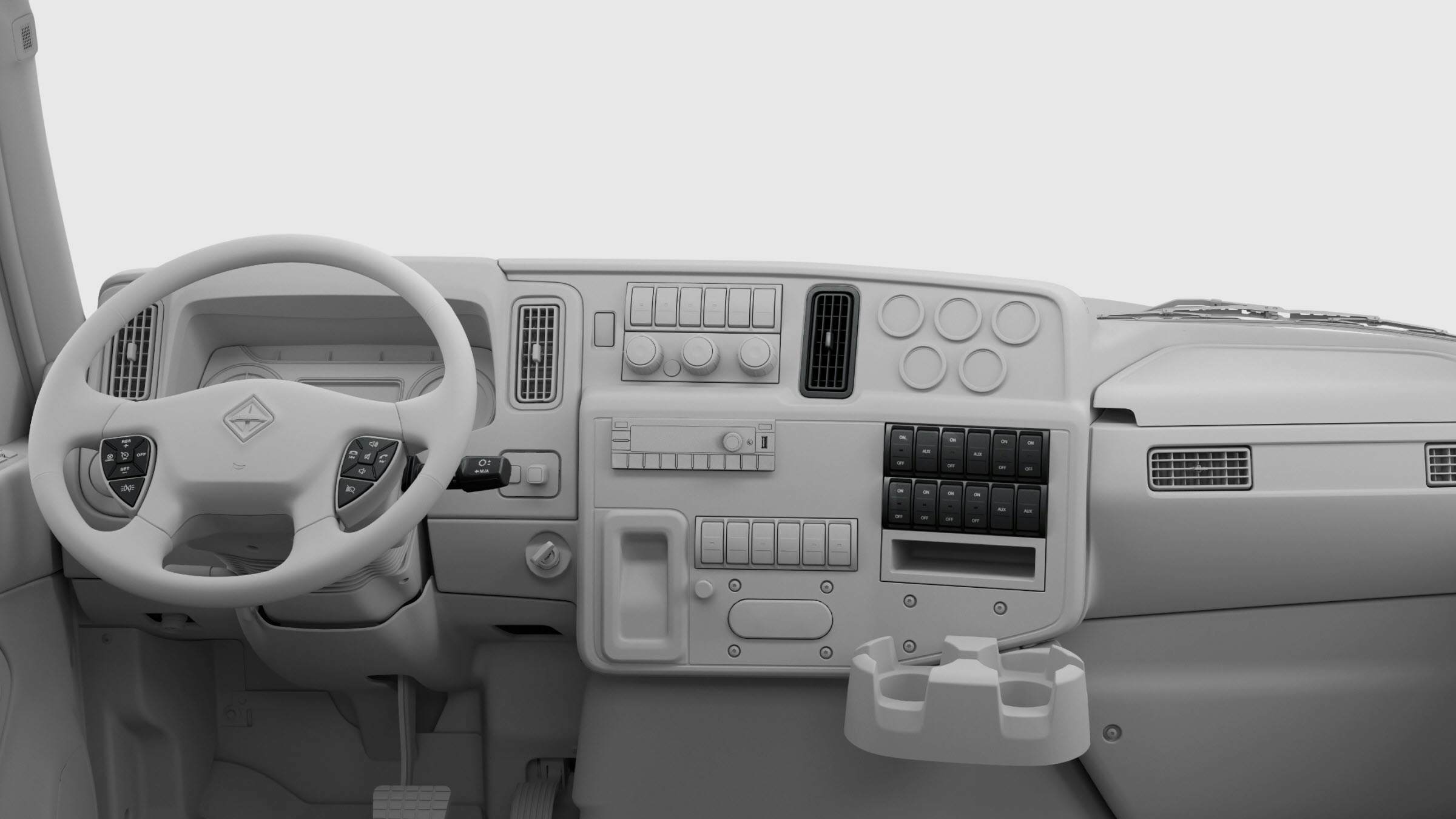

DIAGNOSE
One wire connects major vehicle components and transmits information immediately to and from the driver. Onboard diagnostics allows operators to pinpoint and address vehicle issues in seconds.
AUTOMATE
Protect equipment and crew with the Diamond Logic safety interlocks. From automating headlights to inhibiting ignition during unsafe conditions, the system delivers a higher level of safety.
TAILORED FUNCTIONALITY
APPLICATION

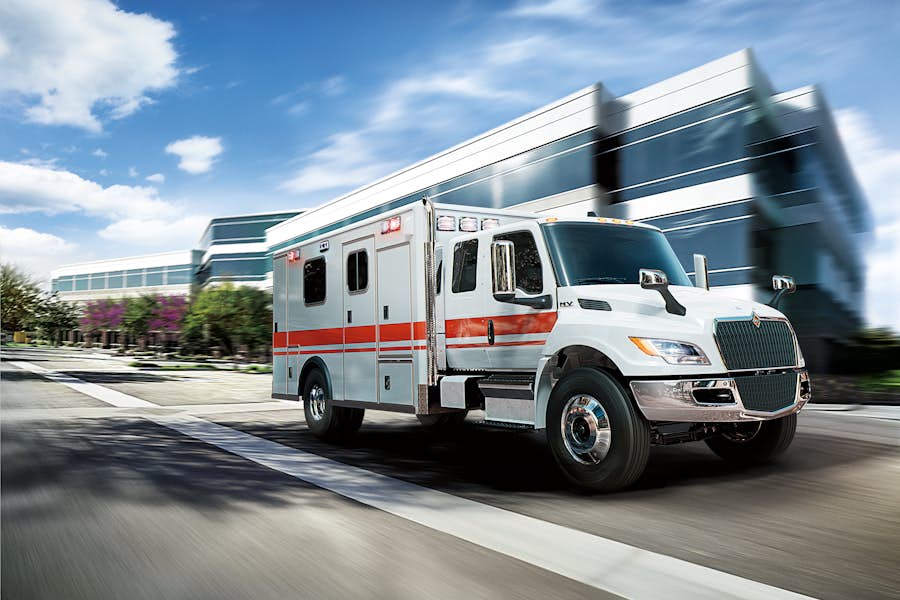

AMBULANCE
Prevents battery discharge by turning off lamp loads as battery voltage drops
Flashing lights
Creates multiple customized flash patterns for body or chassis mounted lights, without the need for additional flasher components
Load sequencing
Activates multiple body lights from a single switch, in an order that doesn't overstress the alternator
APPLICATION
COMPRESSED GAS
Allows operators to design a custom dispensing system sequence with safety-enhancing interlocks
Equipment stow safeguard
Interlocks hose and nozzles with the engine so vehicles can't drive from the jobsite unless equipment is properly stowed
Remote start/stop
Enables operators to remotely start, stop and restart the engine from a single control in case of emergency
APPLICATION
DRY VAN
Allows for a complete DOT inspection with a single push of a button, cycling through all the lights to make sure they are functioning properly.
Lift gate control
Prevents battery discharge by turning off loads as battery voltage drops
Integrated body and cab door locks & alerts
Prevents theft, and spoiled cargo in refrigerated bodies, with audible and visual alerts when any doors are left open while the ignition is on
DUMP
Measures and alerts operators of low oil volume to prevent equipment damage
Hydraulic oil filter clog indicator
Indicates a clogged filter, which prevents the hydraulic system from working properly
Tarp control
Allows operators to wind and unwind their tarp using an instrument panel switch, and is tied to road speed to prevent tarp damage
APPLICATION

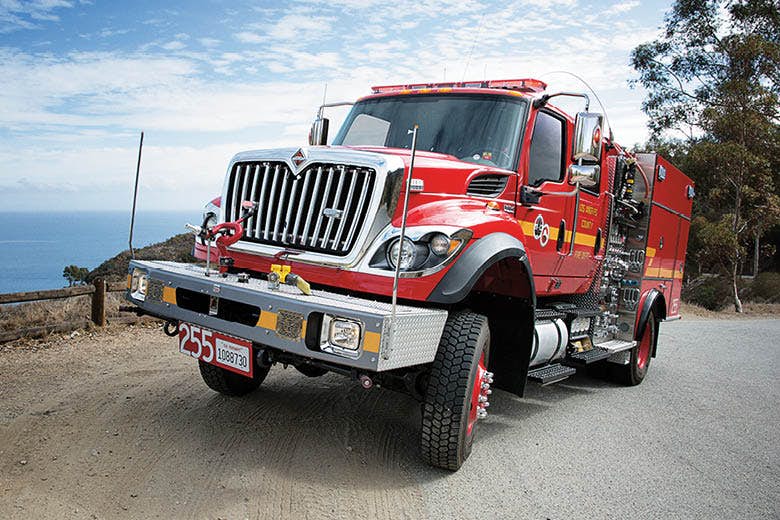

FIrE
Automates steps to safely and efficiently engage the water pump system
Load management
Prevents battery discharge by turning off loads as battery voltage drops
Siren control
Enables operators to conveniently control sirens from a steering wheel switches
APPLICATION
MIXER
Enables operators to remotely activate the throttle from the rear while concrete is being poured
Barrel control
Allows operators to control barrel speed and direction
Hopper control
Automatically stows the hopper when trucks travel faster than 10 miles per hour
.jpg?rev=070cac8f82634baa97fc9631bedc40b2&ar=3:2&max-w=900&max-h=600&auto=format&fit=crop&q=40&crop=entropy&w=3000&h=2002&hash=3463643DA90BBC9158989101AA31CAF9)
APPLICATION
PLOW
Allows operators to override PTO shutdown in order to raise the vehicle blade
Auto chain control
Initiates chains from an instrument panel switch, and avoids equipment damage by automatically disengaging chains when operators reach high speeds
Tarp control
Allows operators to wind and unwind their tarp using an instrument panel switch, tied to road speed to prevent tarp damage
APPLICATION

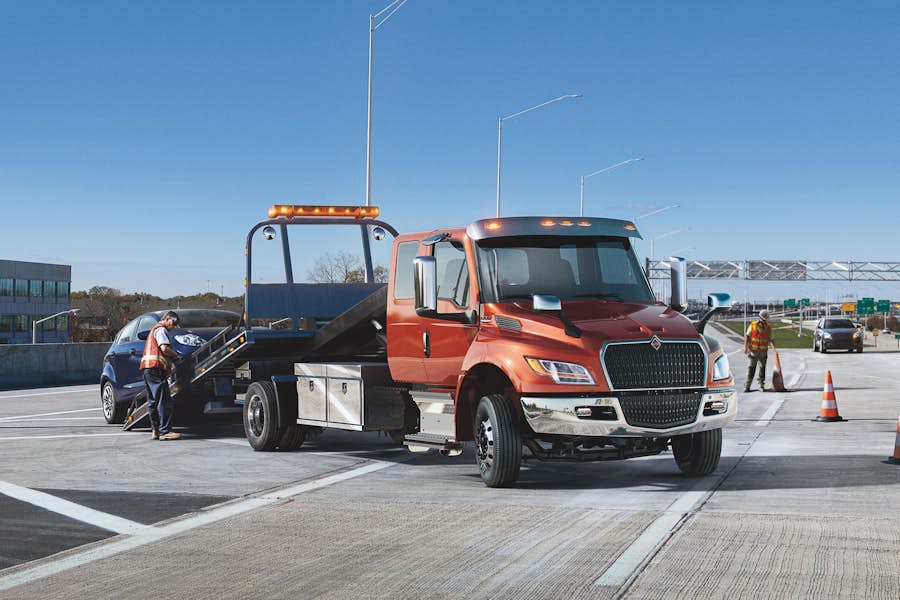

TOWING
Theft deterrent system
Requires operator to enter a predetermined code before truck will move
Park brake alarm
Alerts operators to set the parking brake when any door is open
Body equipment interlocked to engine
Interlocks body equipment and transmission, preventing truck from moving until equipment is properly stowed
APPLICATION
TANKER
Allows operators to design a custom dispensing system sequence with safety-enhancing interlocks
Air valve activation
Automatically opens valves prior to PTO operation, reducing equipment fatigue and potential for error
Headlights on with wipers
Headlights automatically turn on when windshield wipers are initiated
APPLICATION
UTILITY
Reminds operator to use and stow wheel chocks with audible alerts
Low voltage alarm warning
Alerts drivers when battery voltage decreases to prevent battery discharge
Cabinet & body lights
Allows operators to set any and all lights to custom timers to conserve battery power
APPLICATION
REFUSE
Customizes and automates the number of times waste is packed depending on operator preference
Master body switch power with interlocks
Ties use of body equipment, PTO, packer or engine into specific safety conditions that must be met before operators can initiate the task
Rear lighting for back-up camera
Increases visibility for camera by adding additional lights and instrument panel switches to activate
