LT® SERIES
DEPENDABLE. DRIVER-FRIENDLY.
IT'S GOT TO BE AN LT SERIES.
With its fine-tuned ergonomics, spacious interior and uncompromising durability, the International® LT® Series embodies driver-centricity. The addition of the International® S13 Integrated Powertrain takes it even further, delivering up to a 15%* gain in fuel economy. Born for the long haul but with the maneuverability for tight city streets, the LT Series navigates with confidence and capability at every turn.
THE CABS
INTERNATIONAL S13® INTEGRATED POWERTRAIN SHIFT WHAT’S POSSIBLE
The team behind the S13 Integrated Powertrain started from scratch to rethink, redesign and reinvent what an integrated powertrain could be. The result is a unified engine, transmission and aftertreatment system that’s simple, easy to service and delivers superior fuel efficiency and performance.
Explore
CUMMINS® X15
Heavy-duty powerhouse with optimized models for performance, productivity or efficiency.
Explore
THE TRIM
CLASSIC
DIAMOND
DIAMOND ELITE
A VISION FOR SAFETY
COLLISION MITIGATION SYSTEMS
The Bendix Wingman Advanced™ and Fusion™ collision mitigation system can greatly enhance operator safety. By integrating adaptive cruise control, lane departure warning, over-speed alert and stationary vehicle braking, these systems can help you potentially avoid a collision or reduce its severity. WABCO OnGuardACTIVE® Collision Mitigation is also available.
VISIBILITY
It’s estimated that 20-30% of truck accidents are vision related. That’s why the LT Series provides impressive forward and lateral visibility. Cab doors have been redesigned with a lower bottom glass edge and no vent window seam for enhanced visibility and reduced blind spots.
LED HEADLAMPS
LED headlamps offer unparalleled nighttime visibility for improved safety whether you’re inside the cab or out.
DELIVER AT ANY DISTANCE.
LONG HAUL
With intuitive controls, enhanced visibility, a quiet cab, critical information at your fingertips and dozens of other smart features, the LT Series keeps you comfortable and in control over the long haul.
LOCAL DELIVERY
Available in multiple cab configurations, including day cab, the LT Series offers the strength and maneuverability to pull heavy loads through tight city streets.
INTERMODAL
The strength, maneuverability and interior accommodations of the LT Series are perfect for navigating crowded ports in style and comfort.
IT ALL ADDS UP.
HVAC
Defrost performance is best in class. Vent placement provides excellent airflow throughout the cabin. A more powerful HVAC system provides more heat in winter and more AC in summer. Optional automatic temperature control maintains your designed temperature.
DRIVER CONTROLS
Driver controls are located by frequency of use, with more frequently used controls located close to the driver. Storage adjacent to the standard USB allows easy charging of personal electronic devices. Four cup and bottle holders quench any thirst.
PREMIUM CLUSTER
The standard premium cluster features large, easy to read text, collision mitigation information, driver configurable digital gauges, driver alerts, real time fuel economy data, and more.
VISIBILITY
The sloping hood and large side windows provide industry-leading visibility. Door mirrors are large and mounted far forward, improving visibility alongside the vehicle.

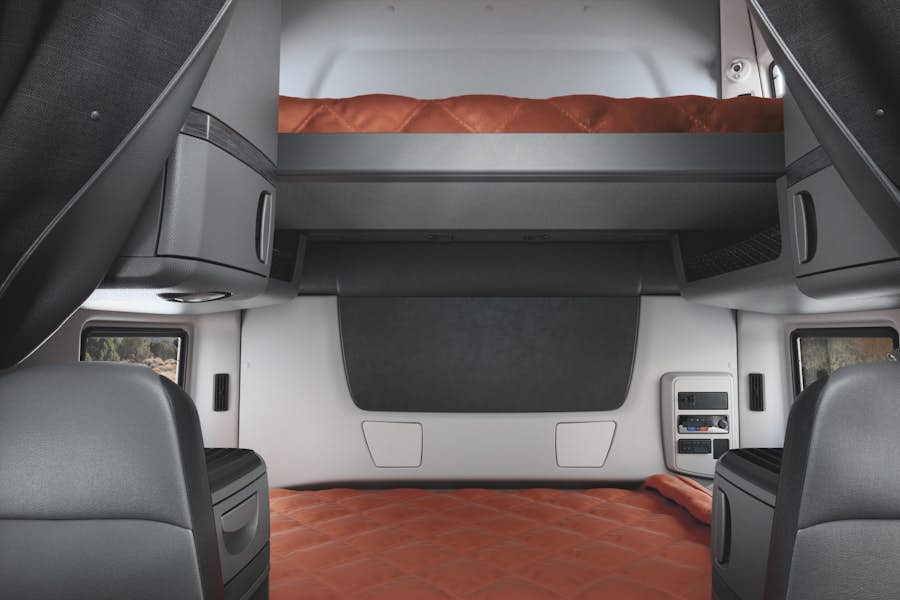

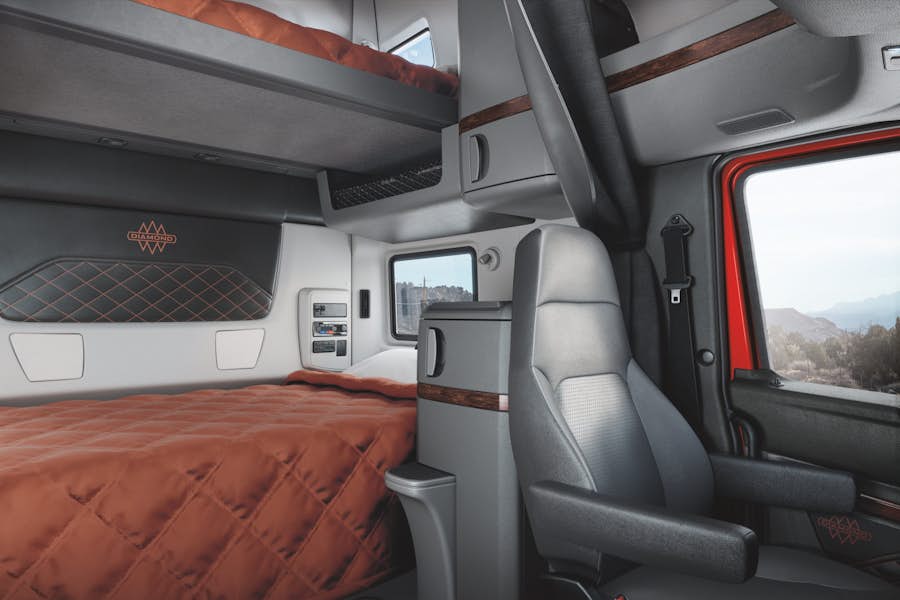

INTERIOR
ROOM TO ROAM
Not all trips require the same amount of bunk space. In fact, some trucks may be operated by one driver on the way out and two drivers on the way back. With the new, flip-down bunk, those who would rather have the extra headroom can simply raise the extra bunk and enjoy the wide-open space.
BUILD YOUR OWN LT® SERIES
Customize and equip your vehicle with the options, components and specifications you need to get the job done.
START BUILDING
SPECIFICATIONS
Strength
-
GVW
32,000 - 60,000 lb.
Configurations
-
Axle Configurations
4x2
6x4
6x2
-
Cab Interior Trim Levels
Classic Trim
Diamond Trim
Diamond Elite Trim
-
Cab/Sleeper Configurations
Day Cab
56" Low Roof Sleeper
56" Hi-Rise Sleeper
73" Hi-Rise Sleeper
73” Sky-Rise Sleeper
-
Chassis Configurations125" BBC 6x2
GVW: 32,000-60,000 Ib.
125" BBC 6x4GVW: 32,000-60,000 lb.
Wheelbase: 173-256"
125" BBC 4x2GVW: 32,000-60,000 Ib.
Wheelbase: 152-230"
-
Models/BBC/BA
125" BBC/50 BA
-
Wheelbase OptionsDay Cab
146 - 226" 4x2
160 - 252" 6x4
Sleeper Cab146 - 226" 4x2
160 - 252" 6x4
Drivetrain
-
EnginesInternational S13 12.74L
400 - 515 hp and 1,450 - 1,850 lb-ft torque
Cummins X15400 - 565 hp and 1,450 - 2,050 lb-ft torque
-
FrameHeat-Treated Alloy Steel
120,000 PSI
-
Front AxlesHendrickson:
12,000 - 14,000 lbs.
Meritor:12,000 - 14,000 lbs.
Dana Spicer:12,000 - 14,000 lbs.
-
Front SuspensionsParabolic TaperLeaf
12,000 - 14,000 lbs.
Spring Monoleaf12,000 - 13,200 lbs.
-
Rear AxlesSingle Rear Axle
Meritor: 23,000 lbs.
(4x2)Dana Spicer: 23,000 lb.
Tandem Rear AxleMeritor: 40,000 - 46,000 lb.
(6x4)Dana Spicer: 40,000 - 46,000 lb.
-
Rear SuspensionsAir Single
International®: 20,000 lbs.
International®: 23,500 lb. Vari-rate spring
Air TandemInternational®: 40,000 lbs.
Hendrickson: HTB 40,000 lbs.
Hendrickson: Has 46,000 lbs.
-
TransmissionsAutomated Manual
Eaton Endurant: 11-, 12-speed
Eaton Endurant XD: 18-speed
Eaton Fuller UltraShift PLUS: 13-, 18-speed
Eaton Fuller Advantage: 10-speed
ManualEaton Fuller Advantage: 10-speed
Eaton Fuller: 10-speed
Fuller: 9-, 10-, 13-, 15-, 18-speed
-
Integrated PowertrainInternational S13 12.74L
400 - 515 hp and 1,450 - 1,850 lb-ft torque
International T1414-speed automated manual transmission with 2 crawler gears
Dual Stage AftertreatmentTwo DEF injectors, dual stage catalysts with upstream and midstream DEF dosing
Other Components
-
Alternators
Leece-Neville: 12 Volt, 160, 210, 240, 325 Amp
Delco Remy: 12 Volt, 165, 200, 300 Amp
-
Battery Systems
Fleetrite®: 12 Volt 3300 - 9200 CCA
JCI: 12 Volt 2250 - 3000 CCA
Deka: 12 Volt 2800 CCA
Enersys Odyssey: 12 Volt 3450 - 4600 CCA
-
Brakes
Air Drum Brakes with ABS with Optional Automatic Traction Control and Electronic Stability Control
Air Disc Brakes with Automatic Traction Control and Electronic Stability Control
Air Drum Brakes with ABS with Optional Automatic Traction Control and Electronic Stability Control
-
Fuel Tanks
70 – 120-gallon, Dual, Non-Polished or Polished Aluminum, Mounted Back of Cab
70 – 140-gallon, Dual, Non-Polished or Polished Aluminum, Mounted Back of Cab
-
Steering
Sheppard
TRW
-
Tires
Continental
Michelin
Bridgestone
Goodyear
Hankook
Available Warranties
-
Standard Warranty
Base Vehicle Coverage: 12 months or 100,000 miles (160,000 km)*
S13 Engine Base Warranty: 24 months, unlimited miles, unlimited hours
T14 Transmission: Base Warranty (includes towing)
Transmission: 60 months; 750,000 miles (1,200,000 km)*
Clutch: 36 months; 350,000 miles (563,000 km)*
Dual Stage Aftertreatment: 24 months, unlimited miles, unlimited hours
Cummins® X15: 24 months or 250,000 miles (400,000 km)*
Front & Rear Axle. Differential and Transmission: 36 months or 300,000 miles (480,000 km)*
Cab Structure / Corrosion: 60 months, unlimited miles, unlimited hours
*Whichever comes first
-
Extended Warranty Options
A variety of Extended Service Contracts are available in addition to the base warranty, including engine components, full chassis, chassis components (HVAC, electrical, starter/alternator).
Supplier extended service contracts are also available: Cummins® engine components, Eaton transmissions and Hendrickson suspensions.
